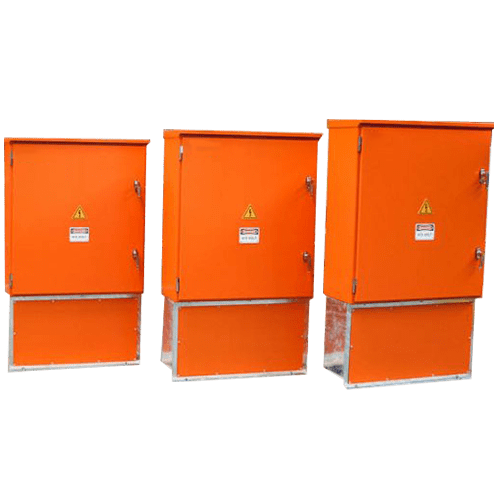

That’s why, at Tedscape, we also offer heavy duty enclosures to cope with the toughest environmental conditions. Proven to withstand the toughest environmental conditions, our heavy duty enclosures are used predominantly in mining sites across Australia.

Technical Data

• Complies with AS/NZS 3439.1 and 3439.3
• IP56 Degree of protection as standard and upgradable to IP66 with rain hood
• 1.6mm and 2.0mm Zincseal steel construction
• Enclosure width 590mm 630mm, 700mm or 900mm
• N12 Pastel Grey or X15 Electric Orange external finish as standard
• The powder coated finish involves a two stage preparation, consisting of degreasing, iron phosphate etch and rinse followed by an electro – statically applied polyester powder coat (120 microns thick), (ensuring anti-rust conditioning, superior finish and lasting strength)

Optional Accessories and Feature

• 316 marine grade stainless steel or Aluminium construction
• Can be shaded for your Architect’s special colour requirements, resulting in an aesthetically pleasing appearance
• Aluminum or Brass gland plates
• Rainhood for outdoor applications
• Door stays
• IPA Studs on Escutcheon
• Galvanized plinth/stand options for floor mounting
• External mounting bracket kits or welded mounting brackets for frame or wall mounted applications
• Lifting provisions for crane handling on site
• Ventilation louvers
• 3 point locking and other locking mechanisms (quarter turn, swing handle etc)
• Cyclone protection kits
• Flush surround kits
• Stainless steel painted or orbital sanded finish
